Multifunction Control Handle and Palm Adjustment

IMPORTANT: If hydrostatic charge pressure warning comes ON in CommandCenter display when multifunction control handle is moved, check hydraulic oil level or replace filter, see your John Deere dealer if the problem is not corrected.

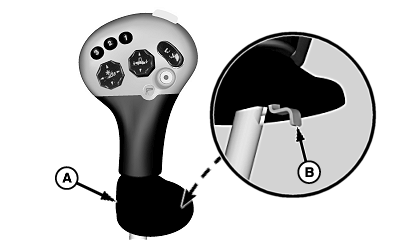

H85889
H85889-UN-10MAY06

A - Palm Rest

B - Lever

Move multifunction control handle forward to move machine forward or pull back slightly to the right and rearward to move machine rearward.

Palm rest (A) is adjustable to three detent positions. To raise or lower palm rest, pull lever (B) under palm rest and adjust palm rest to desired position.

OUO6075,0000600-19-20070702
