Unloading Auger Drive Switch (Yellow)

H85894-UN-10MAY06

H86975-UN-20NOV06

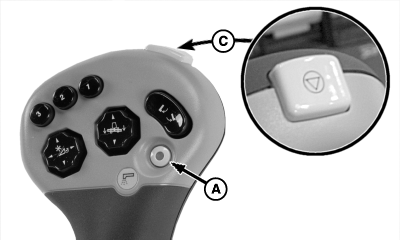

A - Unloading Auger Drive Switch

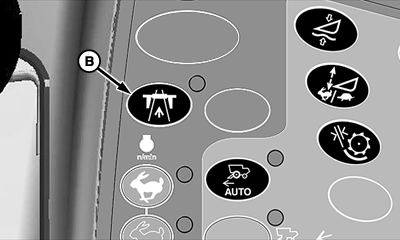

B - Road Transport Disconnect Switch

C - Quick Stop Switch

System Requirements:

• Road transport disconnect switch (B) must be in field position.
• Operator must be seated.

Press unloading auger drive switch once to turn ON or press unloading auger drive switch again to turn OFF. Indicator light comes ON when system is engaged.

NOTE: Unloading auger drive can also be turned OFF with quick stop switch (C) in case of an emergency. To engage unloading auger if header and unloading auger are stopped with quick stop switch, press unloading auger switch again.

Unloading auger drive will engage only when the button is held while the auger is in auto swing mode or when auger is manually swung out less than 50%.

If operator leaves the seat after engagement, the unloading auger drive will continue to operate for five seconds before disengaging. To engage system, sit on the operator’s seat and press the unloading auger switch again.

NOTE: If unloading system fails to engage or stops unexpectedly, sit squarely on the seat, and press unloading auger switch once.
