Contour-Master Tilt Switch (Black)

H85896
H85896-UN-10MAY06

H86975
H86975-UN-20NOV06

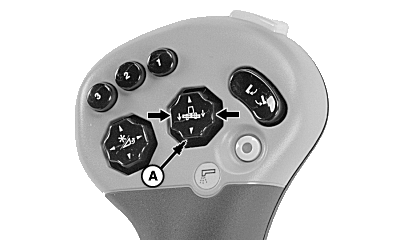

A - Contour-Master Tilt Switch

B - Road Transport Disconnect Switch

Contour-Master tilt switch (A) allows operator to tilt feeder house to the left or right.

System Requirements:

  • Road transport disconnect switch (B) must be in field position.

Press right side of Contour-Master tilt switch to tilt feeder house to the right or press left side of Contour-Master tilt switch to tilt feeder house to the left.

OUO6075,0000605-19-20070329
