Header Height Resume

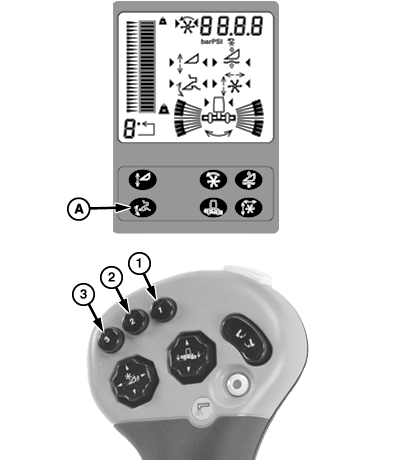

H86495-UN-01DEC06

A - Header Height Resume Button

System must be calibrated with each header that is used with the machine (see Calibration Procedures section).

Activation buttons 1, 2 or 3 located on the multifunction control handle are used to select one of the three different programmable header heights.

NOTE: If both Header Height Resume and Header Height Sensing are enabled, only activation button 1 will activate Header Height Resume, activation buttons 2 and 3 will be assigned to Header Height Sensing.

Operation:

System is active when:

• Properly equipped header is connected to machine.
• Engine is running.
• Road transport disconnect switch is in field position.
• Header Height Resume system enabled.
• Header engaged.

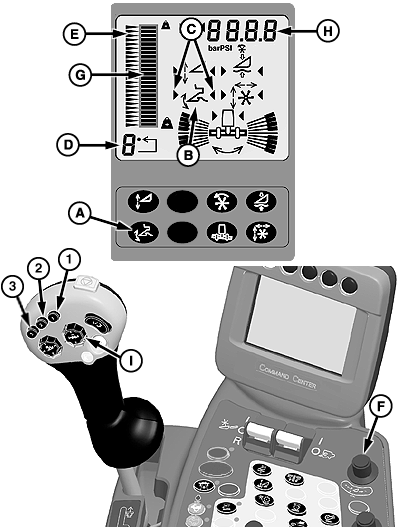

H87049-UN-13MAR07

A - Header Height Resume Button

B - Header Height Resume Symbol

C - System Activation Arrows

D - Activation Button Number

E - Height Setpoint

F - Header Height Control Dial

G - Bar Graph

H - Numeric Display

I - Header Raise/Lower Switch

Activate Header Height Resume by pressing activation buttons 1, 2 or 3 on multifunction control handle. System activation arrows (C) will appear indicating system is activated.

Activation button number (D) in lower left corner of display indicates which activation button was selected.

To change height setpoint (E) of activation buttons, press desired activation button and adjust height using active header height control dial (F).

Turn active header height control dial towards plus (+) symbol to raise header and setpoint or towards minus (-) symbol to lower header and setpoint.

Bar graph (G) and numeric display (H) show the headers relative position based on the Header Height Resume sensor linked to the feeder house.

Manually adjusting header height using header raise/lower switch (I) will deactivate system.

Press activation buttons 1, 2 or 3 to reactivate system. Header will automatically move to the preselected height.

System is disabled by pressing button (A).
