VisionTrak Performance Monitor

H86528
H86528-UN-30JUL07

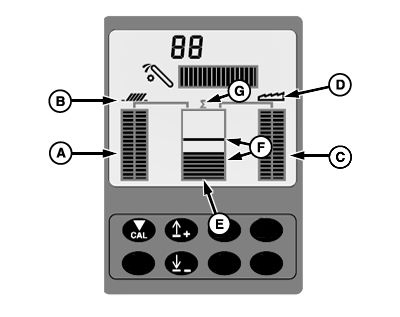

A - Vertical Bar Graphs

B - Shoe Symbol

C - Vertical Bar Graphs

D - Separator Symbol

E - Vertical Bar Graph

F - Normal Range

G - Summation Symbol

Grain loss information is displayed by three vertical bar graphs.

Shoe Loss

Averaged shoe loss is shown by two adjacent vertical bar graphs (A). Shoe symbol (B) is displayed above bar graphs.

Separator Loss

Averaged separator loss is shown by two adjacent vertical bar graphs (C). Separator symbol (D) is displayed above bar graphs.

Total Loss

Total loss is shown on vertical bar graph (E) located in center of display. Two horizontal lines near center range indicate the calibrated normal range (F). Summation symbol (G) is displayed above bar graph.
