VisionTrak Operational Checks

1. NOTE: Two people are required to perform this operational check. One person must remain seated in operators seat, while another person taps on sensors.

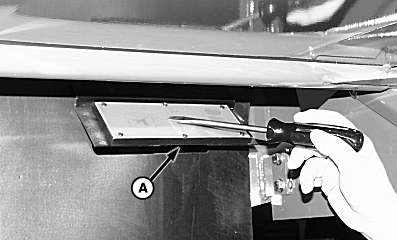

   H70998-UN-25JAN02

   Right-Hand Shoe Sensor

   A - Shoe Sensor

   Turn key switch to “RUN” position, but do not start machine.

---




2. Engage header switch, adjust seed size and press calibration button.

3. Tap on right-hand shoe sensor (A) several times. Person watching VisionTrak display should see movement of shoe loss indicator. Repeat on left-hand shoe sensor.

4.

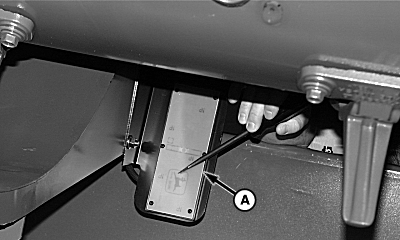

   H70999-UN-25JAN02

   A - Separator Sensor

   Tap on separator sensor (A) several times. Person watching VisionTrak display should see movement of separator loss indicator.

---




5. Disengage header switch and turn key switch OFF.

6. If VisionTrak does not work after these checks, see your John Deere dealer.
