Warning Indicator Display

H85999-UN-13DEC06

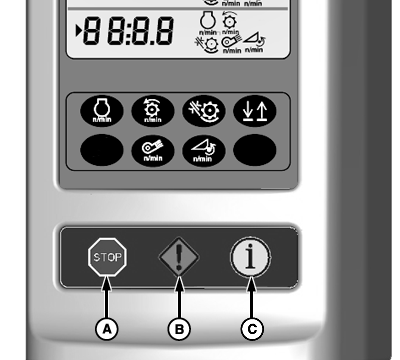

A - Stop Engine Warning Indicator

B - Service Warning Indicator

C - Information Warning Indicator

Stop Engine Warning Indicator (Red) (A): comes on and a diagnostic trouble code is displayed on CommandCenter. This indicates a problem that requires the machine be stopped, engine turned off immediately and the problem corrected. CommandCenter will display the code until the problem is resolved. (Example: Engine Oil Pressure)

Service Warning Indicator (Yellow) (B): comes on and a diagnostic trouble code is displayed on CommandCenter. This indicates a problem should be checked immediately. (Example: Engine Air Filter)

Information Warning Indicator (Gray) (C): comes on and a diagnostic trouble code will be stored indicating a problem exists, but the code is not indicated to the operator. (Example: Low Battery Voltage)
