ComfortCommand Operator's Seat—Adjusting

H72523-UN-11JUN02

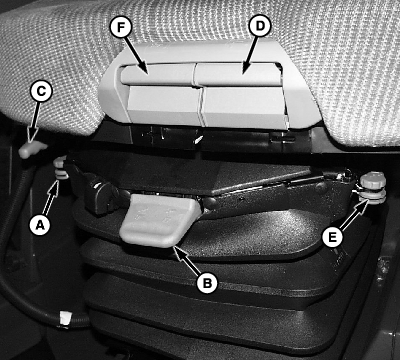

A - Vertical Shock Dampener Control

B - Height Adjustment Handle

C - Fore/Aft Adjustment Handle

D - Seat Bottom Tilt Control Handle

E - Fore/Aft Attenuator Lock-Out Handle

F - Seat Bottom Fore/Aft Adjustment Handle

Push control forward for soft ride or move handle back for firm ride. Between these two positions is medium firmness.

Height Adjustment Handle (B) allows operator to raise or lower the seat.

NOTE: Suspension can be adjusted to reach limits in minimum and maximum heights, which in effect locks out the suspension system making it rigid. Suspension height control will also hit limits if adjusted too close to the extremes.

To raise seat pull up on handle or to lower seat push down on handle.

Fore/Aft Adjustment Handle (C) allows operator to slide the seat forward or rearward for the best working position.

Seat Bottom Tilt Control Handle (D) allows operator to raise or lower the seat cushion for the best working position.

Fore/Aft Attenuator Lock-Out Handle (E) allows operator to lock-out or release forward or rearward movements.

Pull up on handle to lock or push down on handle to release.

Seat Bottom Fore/Aft Adjustment Handle (F) allows operator to move the seat bottom forward or rearward for the best working position.

NOTE: If seat does not float or “pump” up, see your John Deere dealer.

Seat is equipped with an operator's presence system. Machine stays running when operator is seated, but shuts OFF when operator leaves the seat.
