Left-Hand Armrest and Seat Back—Adjusting

H72254
H72254-UN-17MAY02

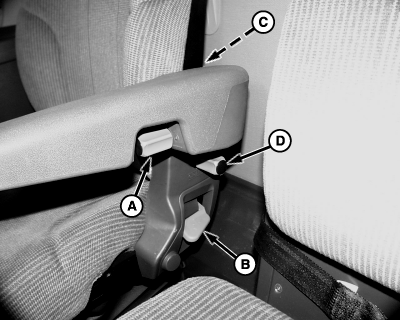

A - Left-Hand Armrest Angle Adjust Knob

B - Seat Back Angle Adjust Handle

C - Lumbar Back Support Adjust Knob

D - Left-Hand Armrest Vertical Adjust Knob

Adjust left-hand armrest up or down with knob (A). Rotate knob clockwise to lower and counterclockwise to raise.

Pull up on seat back angle adjust handle (B) to adjust angle and release when seat back is in desired position.

Turn lumbar back support adjust knob (C) clockwise or counterclockwise to adjust lumbar back support.

Turn left-hand armrest vertical knob (D) counterclockwise to loosen and adjust armrest to desired position and retighten knob.
