Cab Ladder
CAUTION: Do not ride or attempt to climb front or rear ladders
while machine is moving.

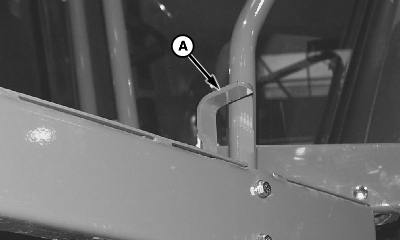

H72668-UN-24JUN02
A - Lever
Ladder can be positioned from ground or landing with lever (A). Swing ladder forward or rearward. Ladder locks into place (3 positions).If ladder latch appears loose, clean out latch pin area. Do not use oil or grease in this area.
|
OUO6075,0000632-19-20070320 |
