Gearshift Lever

IMPORTANT: Stop machine and move multifunction control handle to neutral before shifting gears.

H74961
H74961-UN-28JAN03

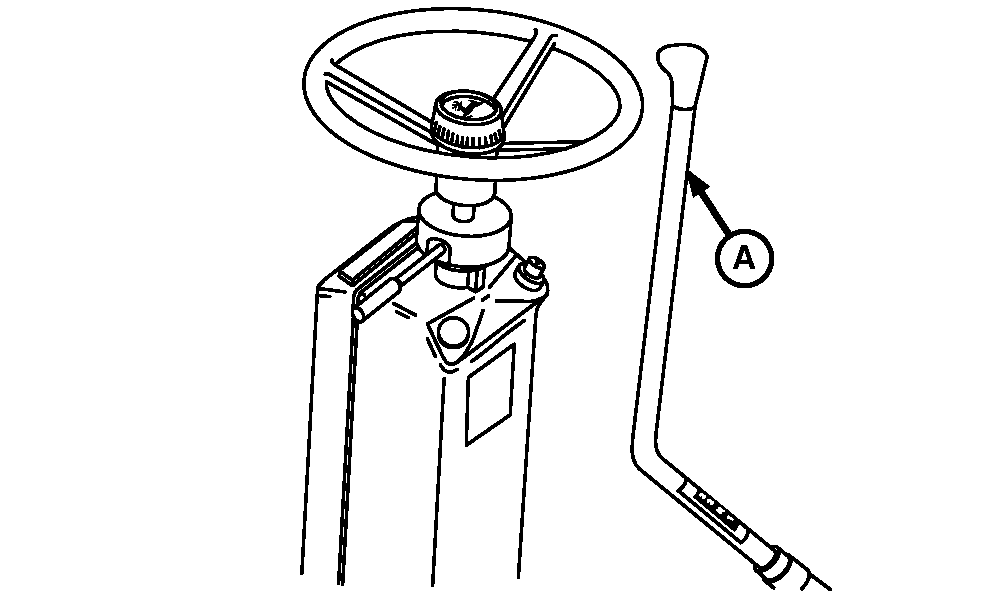

A - Gearshift Lever

When shifting gearshift lever (A) the shift pattern is a straight line with detents for 1, 2 and 3. Less resistance is felt for neutral between 1st and 2nd gears.

OUO6075,000063B-19-20070322
