Stop Lights

H86334
H86334-UN-14JUL06

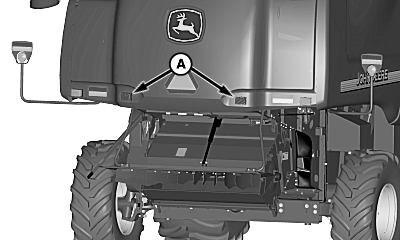

A - Stop Lights

Stop lights (A) come ON when the machine senses a deceleration greater than 3.2 km/h (2 mph). Lights stay on for a minimum of 2 seconds and/or as long as deceleration exceeds 3.2 km/h (2 mph).

Once speed is less than 1.6 km/h (1 mph), stop lights stay on for 2 minutes or until forward acceleration is sensed and the speed is greater than 1.6 km/h (1 mph).

These lights also act as turn indicators, and will illuminate when a turn is signaled. The light in the direction of the turn flashes, while the opposite light stays on (not flashing). If a turn is signaled while machine is decelerating, the turn indicator function has priority over the stop light function.
