Hazard Lights

CAUTION: Lights must be turned ON when transporting. Swing cab ladder fully forward to orient warning light towards oncoming motorists.

H86303
H86303-UN-13JUL06

H83721
H83721-UN-13JUN05

H83722
H83722-UN-13JUN05

H82336
H82336-UN-01FEB05

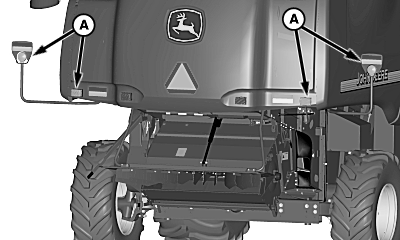

A - Warning (Flashing) Lights

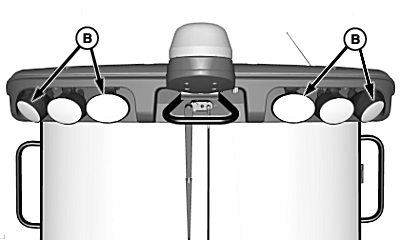

B - Road Lights

Hazard switch controls the warning (flashing) lights (A) and four road lights (B) (if engine is running).

When transporting on a roadway, flashing lights give warning to other drivers. These lights are located on both sides of the machine at the front and rear.

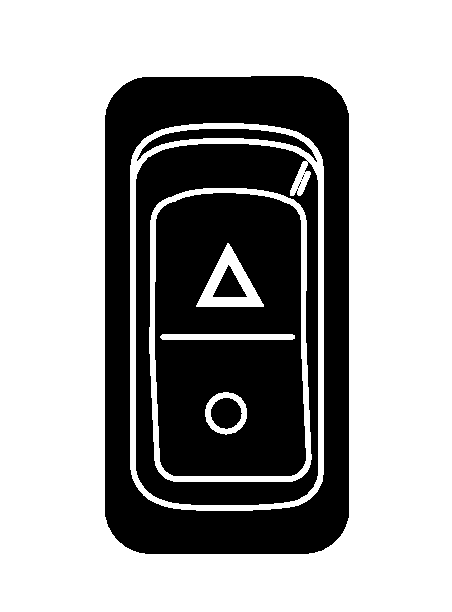

Hazard light switch is a two position switch.

OUO6075,0000642-19-20070615
