Road Lights

CAUTION: Lights must be turned ON when transporting. Swing cab ladder forward to orient warning light towards oncoming motorists.

H86304
H86304-UN-07JUL06

H83721
H83721-UN-13JUN05

H82336
H82336-UN-01FEB05

H83724
H83724-UN-13JUN05

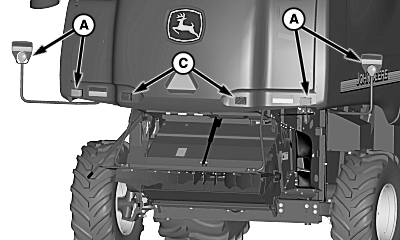

A - Warning Lights

B - Road Light

C - Tail Lights

Road switch controls the warning (flashing) lights (A), four road lights (B), and tail lights (C).

When transporting on a roadway, flashing lights give warning to other drivers. These lights are located on both sides of the machine at the front and rear.

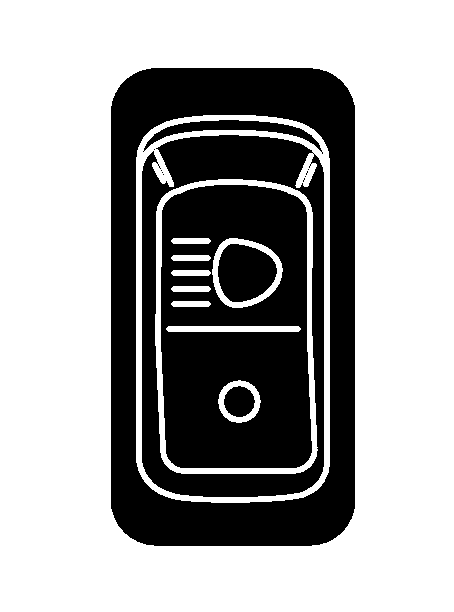

Road light switch is a two position switch.

OUO6075,0000643-19-20070615
