Side Finder and Grain Tank Lights

NOTE: These lights will not operate when the hazard warning lights are ON.

H75359-UN-27FEB03

H75360-UN-27FEB03

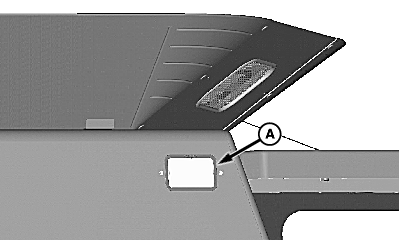

A - Side Finder Light

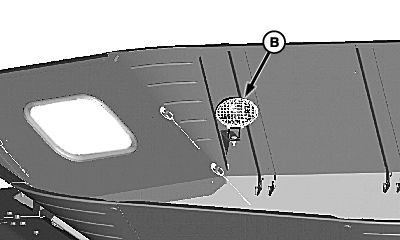

B - Grain Tank Light

Side finder light (A) provide the operator with area lighting on each side of the machine for night operation and low light conditions.

When field light switch is ON, side finder lights are enabled. Use turn signal lever to actuate either right or left side finder light.

Grain tank light (B) provides the operator with lighting in the grain tank for night operation and low light conditions.
