Cleaning Shoe Lights

NOTE: For lighting delay feature, see Lighting Delay/Timeout in this section for further information.

H52440
H52440-UN-23MAR99

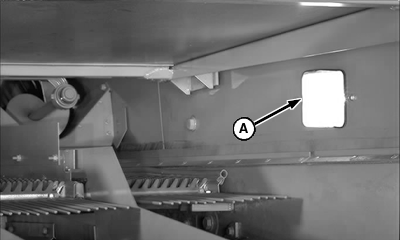

Right-Hand Cleaning Shoe Light

H65920
H65920-UN-06SEP01

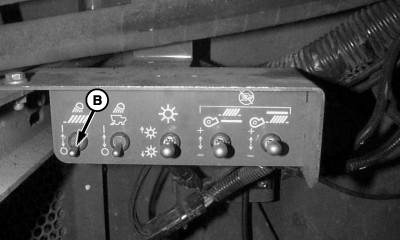

Cleaning Shoe Light Switch

A - Cleaning Shoe Light

B - Cleaning Shoe ON/OFF Switch

Cleaning shoe lights (A) provide the operator with lighting for adjustment of the cleaning shoe at night or in low light conditions.

Cleaning shoe ON/OFF switch (B) is located above the left-hand separator shield.

OUO6075,0000647-19-20071218
