Service Lights (Optional)
CAUTION:

H74766-UN-14JAN03

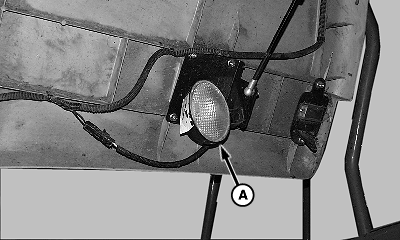

Service Light, Front Left-Hand

H74768-UN-14JAN03

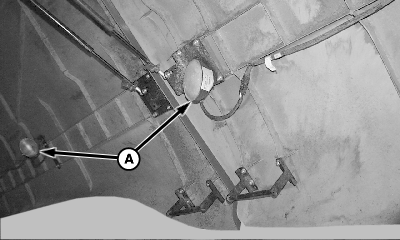

Service Light, Middle and Rear Left-Hand

H75105-UN-10FEB03

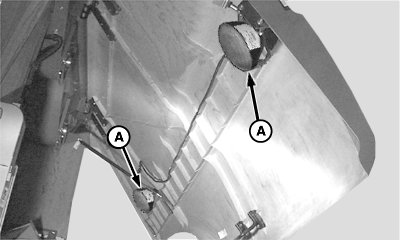

Service Light, Right-Hand Front and Rear

H65921-UN-06SEP01

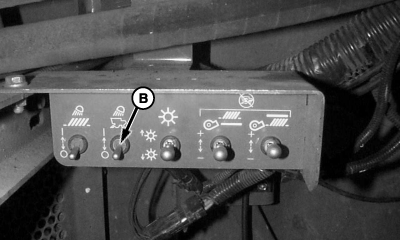

Service Lights Switch
A - Side Panel Lights
B - Service Lights ON/OFF Switch
Avoid motorist confusion. Do not operate service lights when
transporting on public roadways.
NOTE: For lighting delay feature, see Lighting Delay/Timeout
in this section for further information.
Additional service lights are available for better visibility
of the separator area.
Service lights (A) are provided on both sides of the machine
under the gull wing doors. Service lights ON/OFF switch (B) is located
above left-hand side separator shield.
|
|
OUO6075,0000648-19-20080625
|
|
