Rear Residue Discharge Lights

CAUTION: To avoid motorist confusion do not operate rear discharge lights on public roadways.

NOTE: CommandCenter display will show a warning indicator if rear discharge lights are left ON while transporting.

H83718
H83718-UN-10JUN05

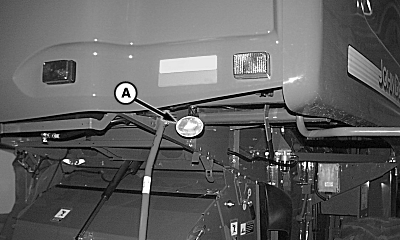

Right-hand Rear Discharge Light

A - Rear Residue Discharge Light

Rear residue discharge light (A) on both sides of machine direct light rearward over the residue discharge area.

These lights also allow the operator to see what is behind the machine when backing up at night.

OUO6075,000064A-19-20070330
