Turn Signals

NOTE: Turn signals operate anytime key switch is ON and Field light switch is OFF. When Field light switch is ON, the turn signal lever operates the side finder lights. Turn signals are not self-cancelling, so lever must be move back to neutral position.

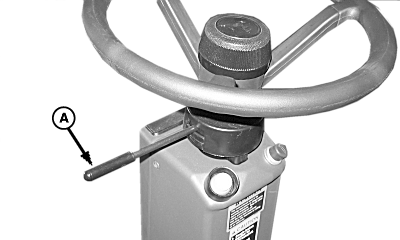

H86330-UN-12JUL06

A - Turn Signal Lever

With turn signal lever ON (hazard or road position), warning lights operate at 60 flashes per minute. When turn signal is set for a right-hand turn, the right-hand warning light will flash 85 flashes per minute while the left-hand warning light stays on (not flashing). The opposite happens for a left-hand turn.

NOTE: Indicator light on steering column glows steadily and indicates a turn.
