Hydrostatic/Hydraulic Oil Level

H82233
H82233-UN-12JAN05

H82363
H82363-UN-03FEB05

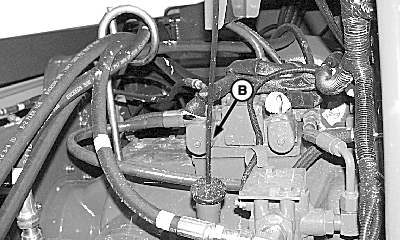

Hydraulic Oil Level (Engine Gearcase)

A - Sight Glass

B - Dipstick

Check hydrostatic/hydraulic oil level with header on ground and all cylinders retracted. Oil level must be at top of sight glass (A) with feeder house fully lowered. Add oil as needed, but do not overfill.

Shut OFF engine, set parking brake and remove key before checking hydraulic oil at engine gearcase. Oil must not be below “ADD” mark on dipstick (B).
