Stopping the Engine

1.

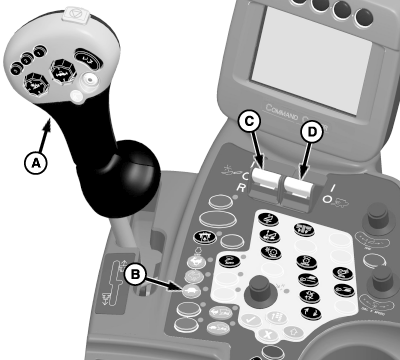

   H86573-UN-27NOV06

   A - Multifunction Control Handle

   B - Engine Speed Control Switch

   C - Header Engage Switch

   D - Separator Engage Switch

   Lower header or reel completely to ground.

---




2. Move multifunction control handle (A) to neutral position and press engine speed control switch (B).

3. Shut OFF header engage switch (C) and separator engage switch (D).

4. IMPORTANT: Cooling of turbocharger and some engine parts is provided by engine oil. Stopping a hot engine might cause damage to these parts.

   Before stopping an engine that was operating at working load, idle engine at least two to three minute to allow turbocharger to cool.

5. CAUTION: Set parking brake and remove key before leaving machine.

   Turn key switch OFF.
