Fuel Tank—Filling
CAUTION: Handle fuel carefully. Do not refuel machine while
smoking. Shut OFF engine, set parking brake and remove key before
filling tank.
Do not overfill fuel tank. Bodily injury can result from fuel splash back. Leakage can result from expansion of fuel. If tank is filled too full, then left in direct sunlight or if temperature gets too hot, tank will overflow.

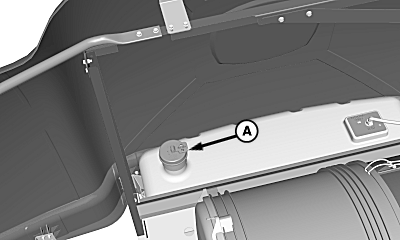

H82496-UN-04MAR05

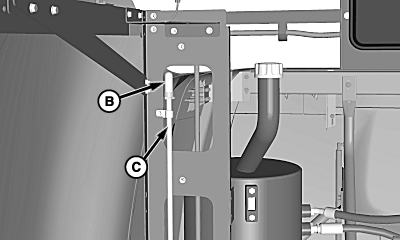

H82417-UN-09FEB05
A - Fuel Tank Cap
B - Fuel Tank Breather
C - Hose
Fuel tank cap (A) is not vented. Excess air is vented through fuel tank breather (B) (located by hydraulic reservoir).Visually inspect fuel tank breather. Do not allow excessive amounts of chaff or debris to collect on top of breather. If breather is covered with debris, it will not allow fuel tank to breathe. Remove fuel tank breather from hose (C) and clean.
|
OUO6075,00006BD-19-20070315 |
