Fuel Tank—Draining
CAUTION: Shut OFF engine, set parking brake and remove key before
performing maintenance work.

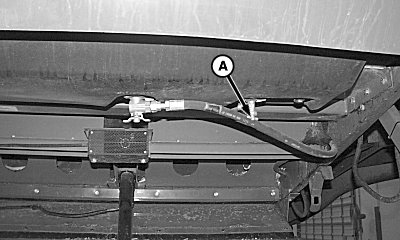

H82383-UN-07FEB05
A - Valve
Drain valve (A) at bottom of fuel tank is used for draining.Use a clean container to inspect fuel.
|
OUO6075,00006BE-19-20070315 |
