Fuel Precleaner Filter—Cleaning

NOTE:

H78613
H78613-UN-13OCT03

Fuel Precleaner Filter

RG11516
RG11516-UN-10NOV00

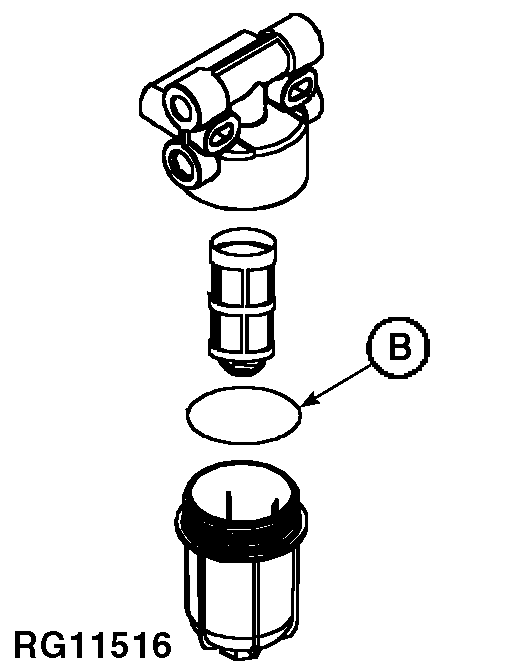

Fuel Precleaner Parts

A - Precleaner Bowl

B - O-ring

Do not clean fuel precleaner and change primary and secondary fuel filters at the same time. Doing so will make it difficult to restart machine. Perform this procedure, then run engine before changing primary and secondary fuel filters.

Clean fuel precleaner filter if buildup is visible on filter screen or if ECU 94.17 and 1347.07 appear. Reset code after cleaning filter.

  1. Start engine and run 3 to 5 minutes at low idle if machine had not been previously running.

  2. Shut OFF engine and close valve at bottom of fuel tank to prevent drain back within supply line.

  3. Thoroughly clean fuel precleaner assembly and surrounding area.

  4. Remove precleaner bowl (A).

  5. Clean filter screen and precleaner bowl. Inspect o-ring (B).

  6. Install screen and tighten precleaner bowl.

  7. Open valve at bottom of fuel tank to fill precleaner.

  8. Start engine and run 3 to 5 minutes at low idle.
