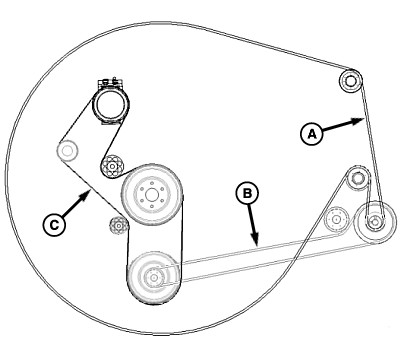

Engine Belt—Routing
H82476-UN-17FEB05
A - Rotary Screen Drive Belt, Screen Side
B - Rotary Screen Drive Belt, Engine Side
C - Cooling Fan, Air Conditioner, Compressor Belt
|
OUO6075,00006C6-19-20070315 |
Engine Belt—Routing
A - Rotary Screen Drive Belt, Screen Side B - Rotary Screen Drive Belt, Engine Side C - Cooling Fan, Air Conditioner, Compressor Belt
|
