Engine Accessory/Fan Drive Belt—Replacing

1. CAUTION: Shut OFF engine, set parking brake and remove key.


   H82404-UN-09FEB05

   A - Nut

   B - Rotary Screen Drive Belt

   Loosen nut (A) and remove rotary screen drive belt (B).

---




2.
   H82405-UN-09FEB05


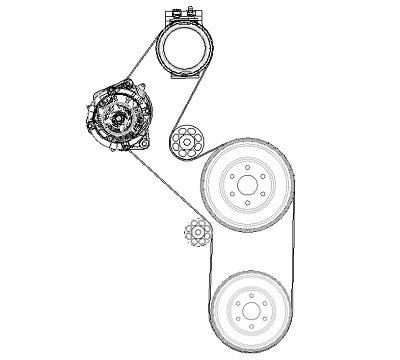

   H82477-UN-17FEB05

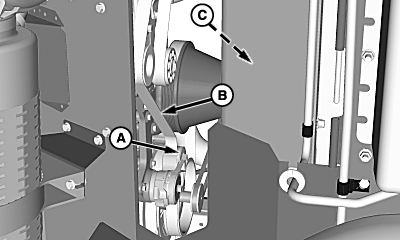

   A - Tensioner Arm

   B - Belt

   C - Fan Blades

   Use breaker bar to relieve belt tension from tensioner arm (A).

---




3. Remove belt (B) and work belt over fan blades (C) to remove.

4.
   H82404-UN-09FEB05

   A - Nut

   B - Belt

   Install belt (B) in reverse order.

---




5. Tighten nut (A) until washer is positioned between end of gauge and bottom of step.
