Rotary Screen Drive Belt—Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

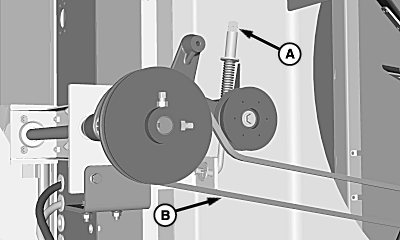

H82404
H82404-UN-09FEB05

A - Nut

B - Rotary Screen Drive Belt

Loosen nut (A) and remove rotary screen drive belt (B).

Install new belt and tighten nut until washer is positioned between end of gauge and bottom of step.
