Rotary Screen Brush—Adjustment

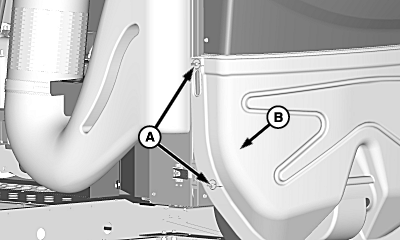

H87209
H87209-UN-16JAN07

A - Quick-Lock Pins

B - Lower Radiator Door

Remove quick-lock pins (A) and open lower radiator door (B).

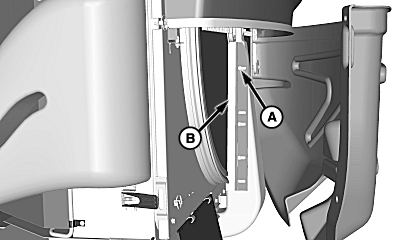

H82389
H82389-UN-04MAR05

A - Cap Screws

B - Brush

Loosen cap screws (A) and adjust brush (B) as needed to remove crop debris.

OUO6075,00006CB-19-20070716
