Left-Hand Side Shields

CAUTION: Shut OFF engine, set parking brake and remove key.

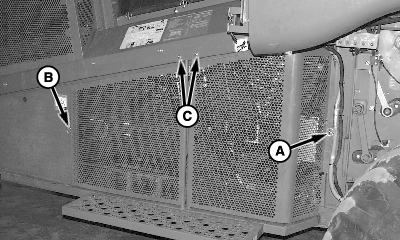

H74780
H74780-UN-14JAN03

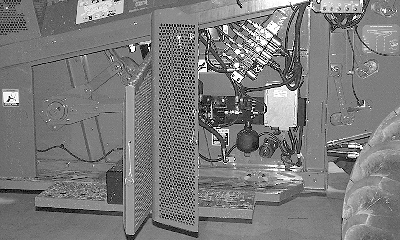

H76803
H76803-UN-07MAY03

A - Quick-Lock Pin

B - Quick-Lock Pin

C - Cap Screws

Side Shields— Remove quick-lock pin (A) and swing rear shield out.

Remove quick-lock pin (B) and swing middle shield out.

Remove cap screws (C) and lift shields completely to remove.

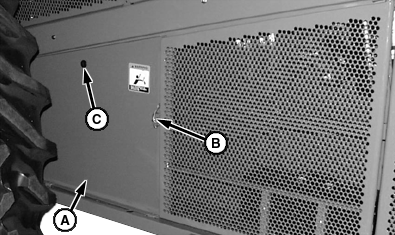

H58753
H58753-UN-14JUL99

A - Fan Shield

B - Quick-Lock Pin

C - Lock

Fan Shield— Remove fan shield (A) by removing quick-lock pin (B) and swing middle shield out.

Turn lock (C) counterclockwise and remove fan shield.

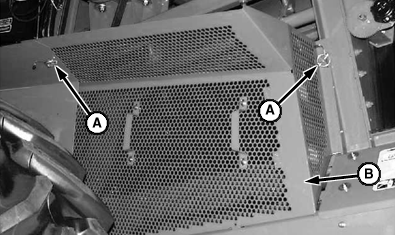

H58754
H58754-UN-14JUL99

A - Quick-Lock Pin

B - Shield

Left-Hand Upper Separator Shield— Remove quick-lock pin (A), lift and remove shield (B).

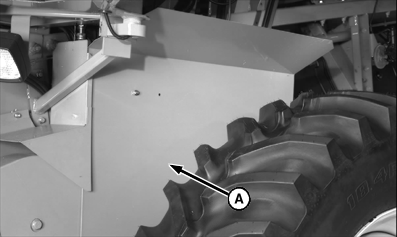

H52787
H52787-UN-16APR99

H58755
H58755-UN-14JUL99

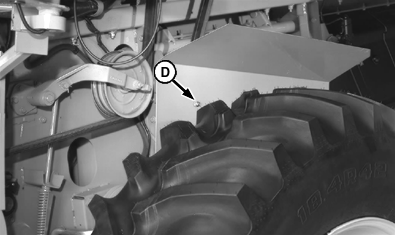

H52788
H52788-UN-14JUL99

A - Front Shield

B - Quick-Lock Pins

C - Shield

D - Cap Screw

Left-Hand Front Separator Shield— Remove front shield (A) by removing quick-lock pins (B), lift and remove shield (C).

Pull front shield rearward. Remove shield completely by removing cap screw (D) and pull shield out of support.

OUO6075,0000739-19-20070320
