Right-Hand Side Shields
CAUTION: Shut OFF engine, set parking brake and remove key.

H62139-UN-11JAN00
A - Quick-Lock Pin
B - Rear Shield

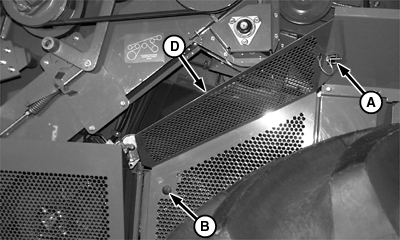

Right-Hand Rear Shield— Remove
quick-lock pin (A) and open rear shield (B) to service belts.

H62140-UN-14FEB00

H62141-UN-11JAN00
A - Quick-Lock Pin
B - Lock
C - Rear Shield
D - Middle Shield

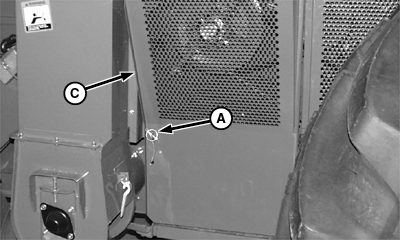

Fan Shield— Remove quick-lock
pins (A) and turn lock (B) counterclockwise to unlock.
Lift and remove rear shield (C) and middle shield (D).

H62142-UN-11JAN00
A - Quick-Lock Pin
B - Shield
C - Cap Screw

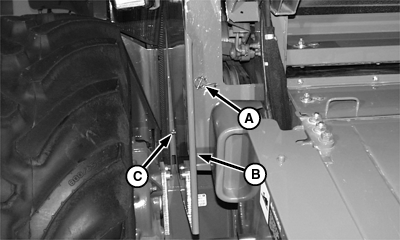

Right-Hand Front Separator Shield— Remove quick-lock pin (A) and pull shield (B) forward.
Remove shield completely by removing cap screw (C) and lift
to remove from lower support.
|
|
