Posi-Torq™ Separator—Dual-Range

CAUTION: Shut OFF engine, set parking brake and remove key.

H52800-UN-01APR99

H62144-UN-11JAN00

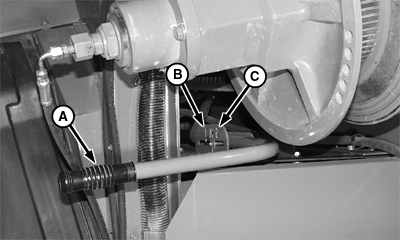

A - Shaft-Handle

B - Low Speed Position (1)

C - High Speed Position (2)

NOTE: Use slowest possible speed with large seed crops to prevent damage.

To shift from low to high speed or high to low speed, move shaft handle (A) to detented neutral position.

For low speed position (B), push handle towards separator side sheet.

For high speed position (C), pull handle away from separator side sheet.

To fully engage drive, it may be necessary to rotate variable sheaves a small amount while moving shift handle.

NOTE: Be certain gears are fully engaged.

When changing separator speeds make sure to cycle power ON and OFF. Machine will now recognize the new speed range.

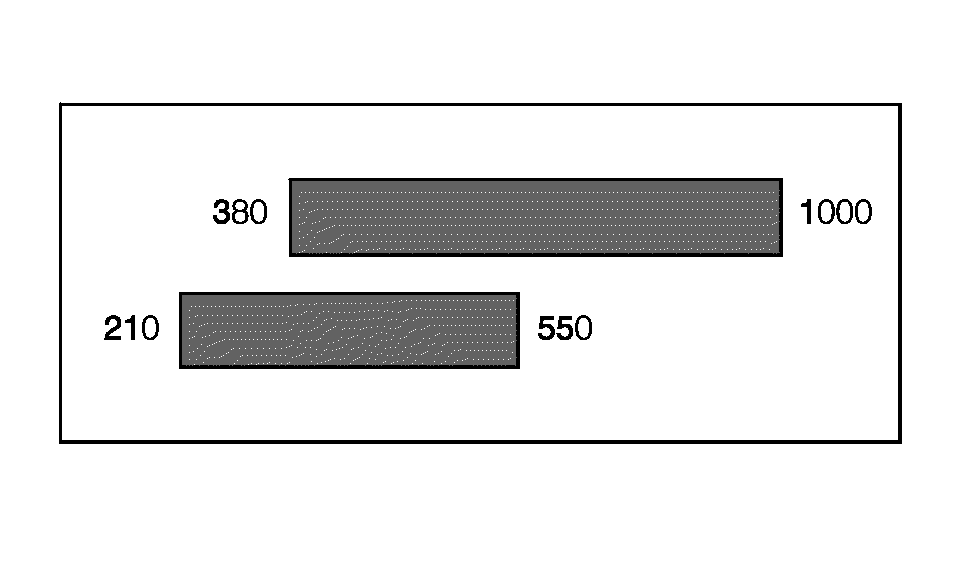

If operating below 550 rpm for extended periods of time, shift to low speed.
