Separator Grate Covers (Attachment)

H54511
H54511-UN-01APR99

H54512
H54512-UN-01APR99

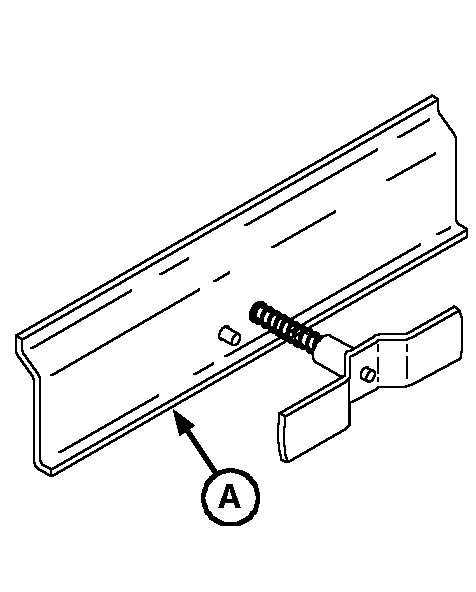

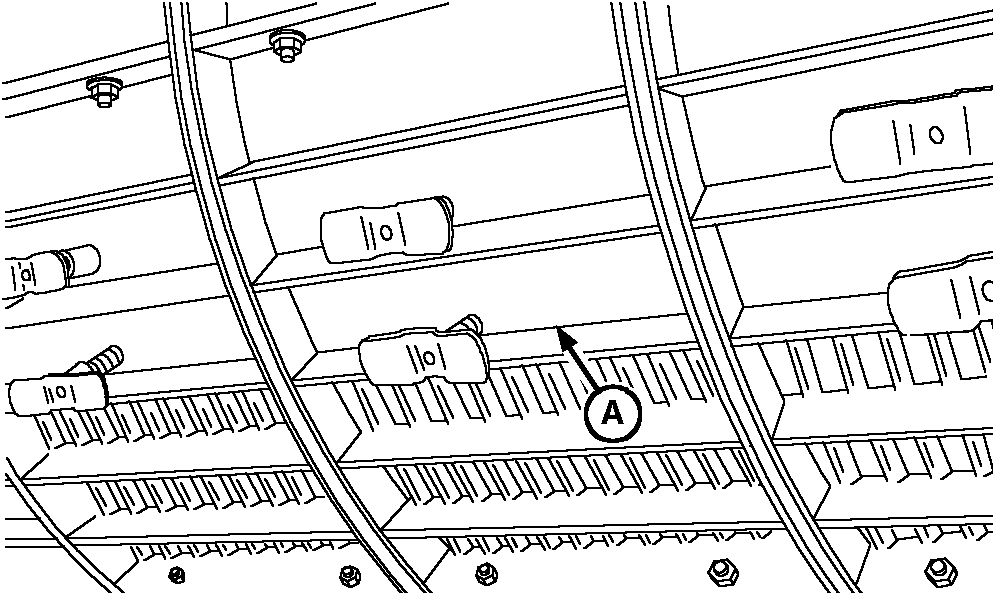

A - Separator Grate Covers

Recommended for very dry small grain. Covers (A) are installed on the separator grates to help balance the chaff load to the cleaning shoe.

Small Wire Concave Initial Cover Configuration

  • Install two rows (eight covers) on right-hand side and three rows (twelve covers) on left-hand side. Make adjustments as necessary depending on conditions.

Large Wire Concave Initial Cover Configuration

  • Install three rows (twelve covers) on right-hand side and two rows (eight covers) on left-hand side. Make adjustments as necessary depending on conditions.
