Countershaft Right-Hand Front Belt—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

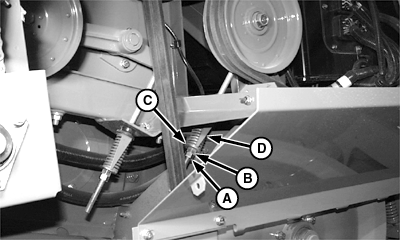

H62180
H62180-UN-13JAN00

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Loosen lock nut (A).

Tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
