Countershaft Right-Hand Front Belt—Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

H62320
H62320-UN-24JAN00

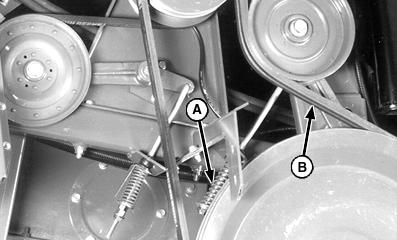

A - Idler Spring

B - Right-Hand Front Belt

Loosen idler spring (A) and remove belt (B).

Install replacement belt and adjust tensioner so washer is positioned between end of gauge and bottom of step.

OUO6075,000075C-19-20070320
