Countershaft Right-Hand Rear Belt—Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

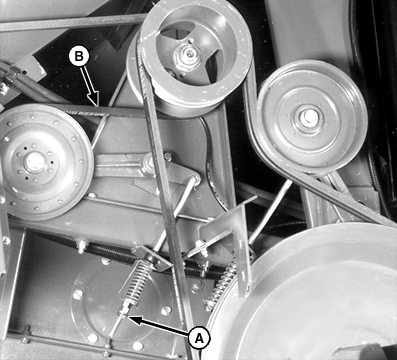

H54681
H54681-UN-13MAY99

A - Nut

B - Rear Countershaft Belt

Remove right-hand front countershaft belt. Loosen tension on idler nut (A) and remove rear jackshaft belt (B).

Install replacement belt and adjust tensioner so washer is positioned between end of gauge and bottom of step.

Install front jackshaft belt and adjust idler tension.

OUO6075,000075E-19-20070320
