Shoe, Fan and Conveyor Auger Belt—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

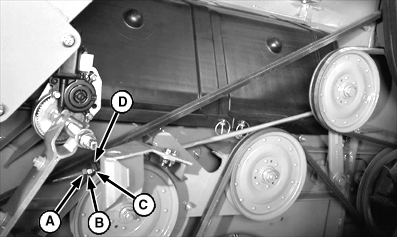

H54521
H54521-UN-23MAR99

Shield Removed for Clarity

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Loosen lock nut (A).

Tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,0000761-19-20070320
