Chaffer or Sieve Indicator—Calibration

H69292-UN-16JUL01

H54525-UN-01APR99

H58411-UN-15JUL99

H69293-UN-16JUL01

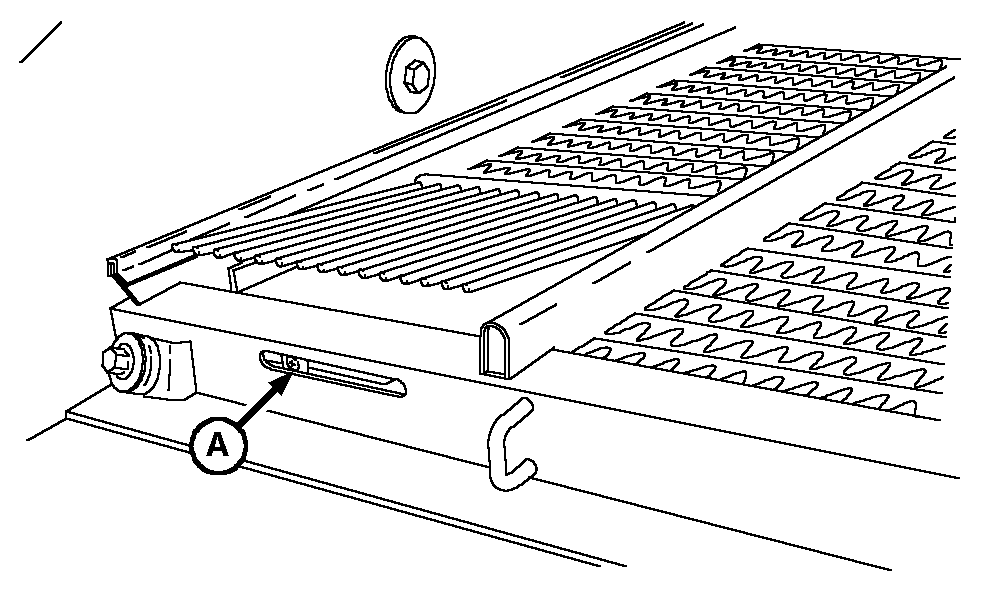

A - Set Screw

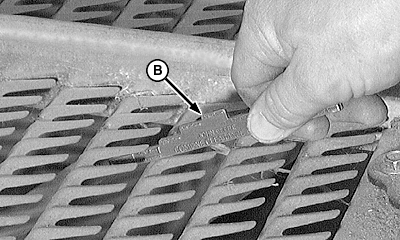

B - Clearance Gauge

C - Gauge 8 mm (5/16 in.)

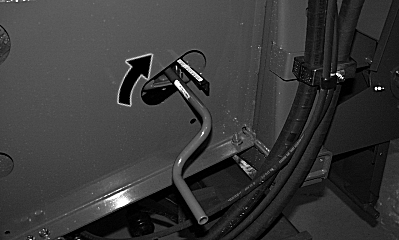

Loosen set screw (A) at left-hand rear corner of chaffer (opening in chaffer frame). Open chaffer slowly until opening measures approximately 8 mm (5/16 in.) with combine clearance gauge (B).

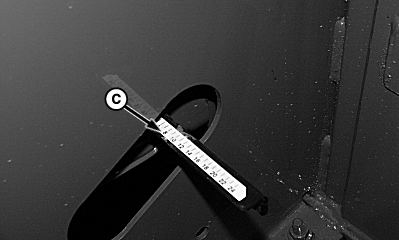

Slide opening gauge in or out until gauge reads 8 mm (5/16 in) (C) from side sheet. Tighten set screw at the rear of chaffer.

This procedure to also used to calibrate the sieve.
