Chaffer/Sieve Motor—Manual Adjust (Optional)

1. CAUTION: Shut OFF engine, set parking brake and remove key to help prevent accidental starting and personal injury.

   NOTE: Same manual adjust procedure can be used on the chaffer or sieve motor.


   H75897-UN-09APR03

   A - Cap Screws

   Remove cap screws (A) to access motor.

---




2. IMPORTANT: To prevent adjusting motor damage, do not use wrench on knob.

   NOTE: Once chaffer or sieve adjusting motor is repaired or replaced, adjusting motor will have to be recalibrated. (See Calibration Procedures section).

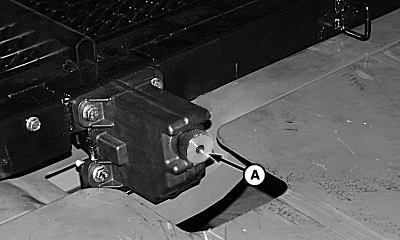

   H74041-UN-05NOV02

   A - Knob

   Use knob (A) to adjust motor. Turn knob clockwise to close and counterclockwise to open chaffer/sieve.

---
