Clean Grain Elevator Belt—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

H75300
H75300-UN-24FEB03

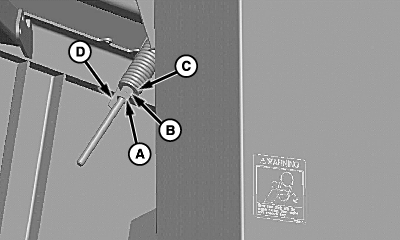

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Loosen locking nut (A).

Tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,0000775-19-20070320
