Threshing Elements and Tines—Remove and Install

1. IMPORTANT: Rotor is a balanced assembly. Elements and tines must be replaced in sets of three to maintain balance. Replacement kits are available through service parts and include new cap screws with pre-applied Threadlock and Sealer. Tines or elements that become loose may result in machine damage.

   If tines or elements need to be removed for other than replacement, mark location on tine(s)/element(s) and rotor, prior to removal. Install in same location as removed to maintain balance. Always use new cap screws.

   Make sure to clean out tailings and front cross auger if tine replacement is due to broken or damage tines. Failure to do so before initial start-up may allow broken tines to recirculate and cause tine damage to reoccur.

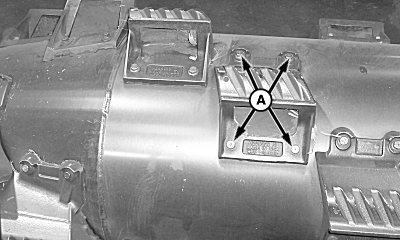

   H82539-UN-07MAR05

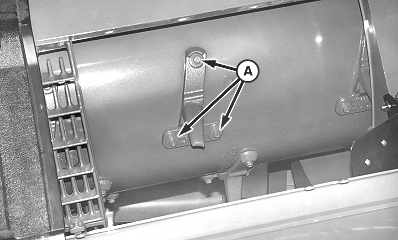

   H73898-UN-30OCT02

   A - Cap Screw

   Remove separator grates or concave sections as needed to access rotor. (See Concave Sections—Remove and Install.)

---




2. Inspect wear on threshing elements and separator tines using AH204933 Clearance Gauge.

3. Remove cap screws (A) and threshing element or tine.

4.

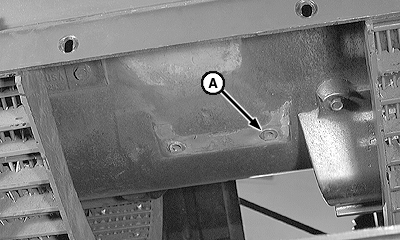

   H54006-UN-18FEB99

   A - Threaded Insert

   Inspect RIVNUT® threaded inserts (A). Replace if damaged.

---




5. If one element or tine needs replaced, replace all in the group. Example: If element 2 needs to be replaced, replace elements 1 and 3 also.

6. Use Threshing Elements and Separator Tine Location diagram for identifying elements and tines.

   NOTE: Rice Rotor Configuration Option to Standard Rotor Configuration: Remove elements 7 & 9 & 11, 13 & 15 & 17, 20 & 22 & 24 (specified elements that have been removed will have an “O” stamped into the rotor) and reinstall hardware to prevent crop material from building up in holes (refer to Standard Rotor Configuration later in this section.)

   Threshing Element Groups (Standard Rotor Configuration)	Separator Tine Groups (Standard Rotor Configuration)
   Group 1 Elements = 1, 2, 3	Group 1 Tines = 1, 4, 5
   Group 2 Elements = 4, 5, 6	Group 2 Tines = 2, 3, 6
   Group 3 Elements = 7, 8, 9	Group 3 Tines = 8, 9, 11
   Group 4 Elements = 10, 11, 12	Group 4 Tines = 7, 10, 12
   Group 5 Elements = 13, 14, 15	Group 5 Tines = 13, 16, 18
   	Group 6 Tines = 14, 15, 17
   	Group 7 Tines = 19, 22, 23
   	Group 8 Tines = 20, 21, 24
   Threshing Element Groups (Rice Rotor Configuration)	Separator Tine Groups (Rice Rotor Configuration)
   Group 1 Elements = 1, 2, 3	Group 1 Tines = 1, 4, 5
   Group 2 Elements = 4, 5, 6	Group 2 Tines = 2, 3, 6
   Group 3 Elements = 7, 9, 11	Group 3 Tines = 8, 9, 11
   Group 4 Elements = 8, 10, 12	Group 4 Tines = 7, 10, 12
   Group 5 Elements = 13, 15, 17	Group 5 Tines = 13, 16, 18
   Group 6 Elements = 14, 16, 18	Group 6 Tines = 14, 15, 17
   Group 7 Elements = 19, 21, 23	Group 7 Tines = 19, 22, 23
   Group 8 Elements = 20, 22, 24	Group 8 Tines = 20, 21, 24

7. Tighten cap screws to specification.

   Item	Measurement	Specification
   Threshing Element and Separator Tine Cap Screws	Torque	90 N˙m (66 lb-ft)
