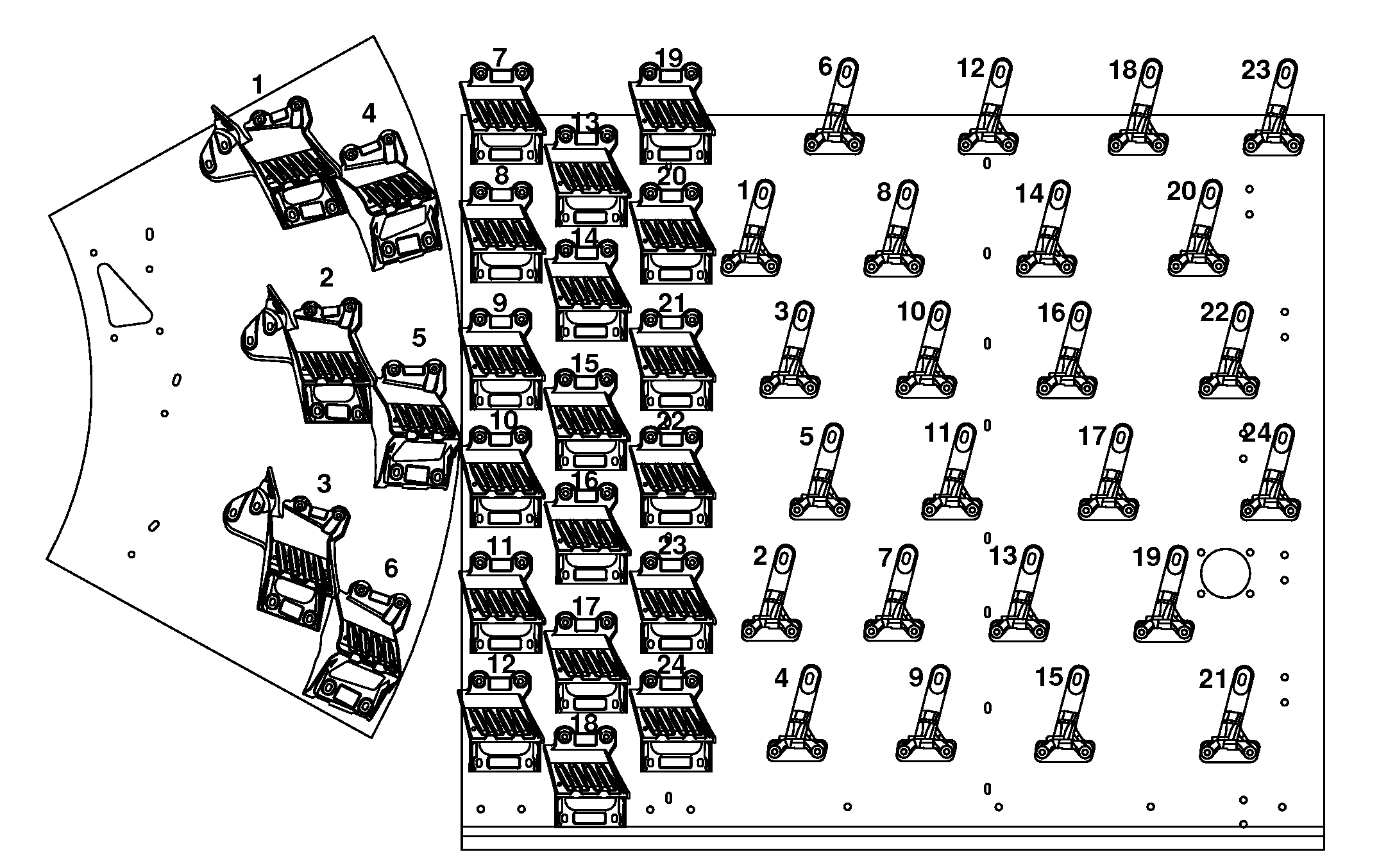

Threshing Element and Separator Tine Location (Rice Configuration
Option)
NOTE:
H82364-UN-03FEB05
For best performance in tough material handling and tough
threshing conditions operate with all 24 threshing elements installed.
To reduce rotor power or improve straw quality, remove elements in
groups of three (7 & 9 & 11, 13 & 15 & 17, 20 &
22 & 24 specified elements that have been removed will have an
“O” stamped into the rotor) starting in the front of the
rotor.
|
|
OUO6075,0000783-19-20080630
|
|
