Chopper Tailboard—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

H87244
H87244-UN-22JAN07

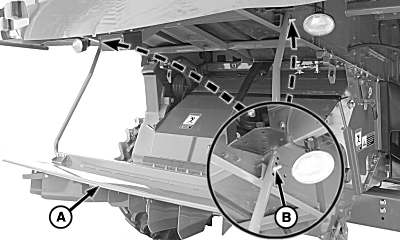

A - Tailboard

B - Cap Screws

Adjust chopper tailboard (A) up or down to control straw spread width.

Adjust chopper tailboard by removing cap screws (B) and adjust tailboard up or down. Attach tailboard with cap screws and tighten.

OUO6075,0000789-19-20070423
