PowerCast Tailboard—Operating (Optional)

NOTE: Spreader speed can be adjusted with separator disengaged. This allows operator to adjust spreader setpoint speed. When separator is engaged, spreader will now operate at the preset speed.

H87327-UN-31JAN07

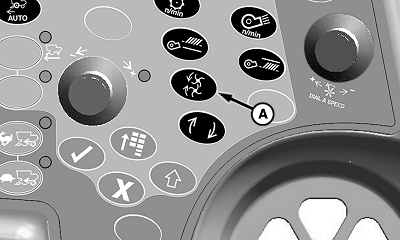

A - Spreader Speed Adjust Switch

Refer to Spreader Speed Adjust Switch in CommandTouch Armrest Console section for more information on adjusting.

NOTE: For best results in dry crop conditions, keep uncut material on upwind side (when possible) for best material distribution.

When spreader is not being used, set spreader speed to zero, refer to Spreader Speed Adjust Switch in CommandTouch Armrest Console section for further information.
