Chopper Stationary Knifebank—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key. Before performing service or maintenance on raised chopper, use lift actuator to snap lock-out pins into place.

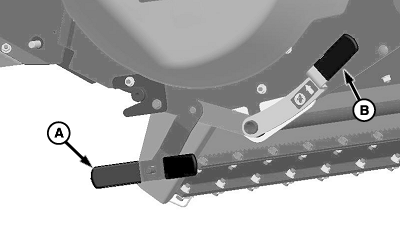

H86569-UN-12SEP06

Knifebank Disengaged Position

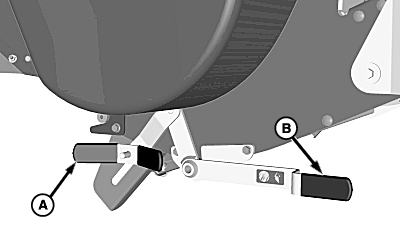

H82429-UN-10FEB05

Knifebank Engaged Position

A - Wing Nut

B - Handle

IMPORTANT: Knifebank must be in fully disengaged position for corn.

To fully disengage knifebank, loosen wing nut (A) by rotating counterclockwise and move adjustment handle (B) upward until knifebank is at the bottom of the adjustment slot. Tighten wing nut by rotating clockwise.

To fully engage knifebank, loosen wing nut (A) by rotating counterclockwise and move adjustment handle (B) downward until knifebank is at the top of the adjustment slot. Tighten wing nut by rotating clockwise.

NOTE: Chopper can be run with knives disengaged. however, cut quality will decrease.

Use intermediate position to optimize power consumption and achieve satisfactory cut length.
