Spreader Disc Assemblies
H72019-UN-30APR02

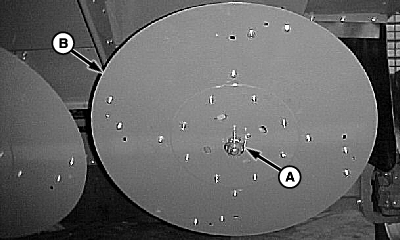

A - Quick-Lock Pins
B - Disc Assembly
Spreader disc assemblies can be removed for service or to provide additional clearance under spreader.
CAUTION: Disc assemblies weigh approximately 25 kg (55 lb).
IMPORTANT: Disc assemblies are left-handed and right-handed. In order to assure correct installation, mark disc assemblies before removal.
Remove quick-lock pins (A) from spreader shafts and remove disc assemblies (B).
|
