Spreader Blade—Replacing

IMPORTANT: When replacing worn or damaged spreader blades, make sure to replace blades on opposite sides of spreader disc at the same time. This is important to maintain spreader disc rotational balance.

H80249-UN-09FEB04

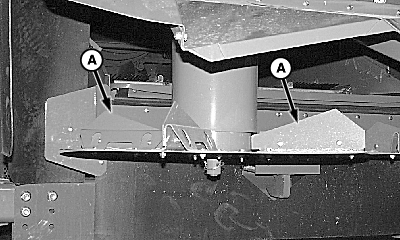

A - Blades

Replace blades (A) to maintain spreader disc rotational balance.
