Grain Tank Sample Trough

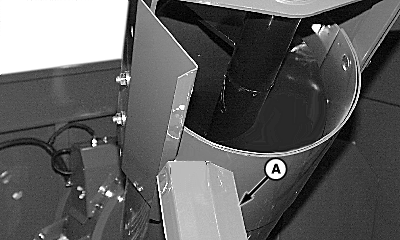

NOTE: Insert end of sample trough through opening in grain tank and attach opposite end to slot in loading auger. No hardware is required to retain sample trough.

H87850-UN-10APR07

Grain Tank Sample Trough

H62227-UN-19JAN00

A - Sample Trough

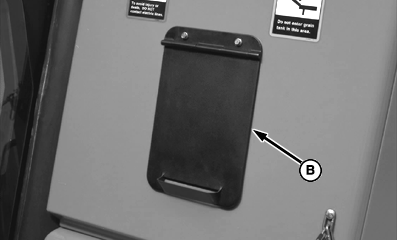

B - Door

With machine full of harvested crop, bring multifunction control handle to neutral and stop. Apply the parking brake.

Disengage header, but leave separator engaged.

CAUTION: Do not have a second person check for a grain tank sample.

Open door (B). Lower end of grain tank trough will spill off a sample of the harvested crop.
