Grain Tank Cross Auger Covers

Standard Grain Tank

CAUTION: Shut OFF engine, set parking brake and remove key.

IMPORTANT: If these covers are raised too far in edible beans, auger drive shear bolt may break repeatedly, or damage could occur to augers or grain tank.

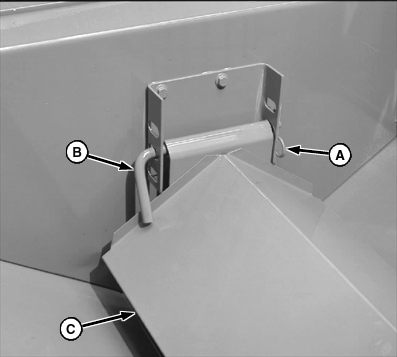

H54573-UN-08APR99

A - Locking Pins

B - Pins

C - Auger Cover

Adjust auger covers down to slow unloading rate.

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and install previously removed pins and locking pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

NOTE: Adjust auger covers down in edible beans.

Rice Position:

NOTE: Auger covers come preset for rice and edible beans from factory.

Left-hand side of auger covers should be set to middle position.

Right-hand side of auger covers should be set to lowest position.

NOTE: Set auger covers to top position for all other crops.

High Unload Rate Grain Tank

CAUTION: Shut OFF engine, set parking brake and remove key.

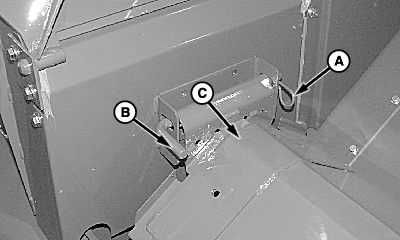

H80947-UN-27MAY04

A - Locking Pins

B - Pins

C - Auger Covers

Normal Position:

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and install previously removed pins and locking pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.

NOTE: Set auger covers to top position for all crops.
