Unloading Auger Drive Shear Bolt

CAUTION: Shut OFF engine, set parking brake and remove key.

H82824-UN-21MAR05

H54575-UN-08APR99

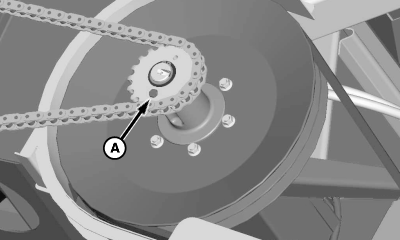

A - Shear Bolt

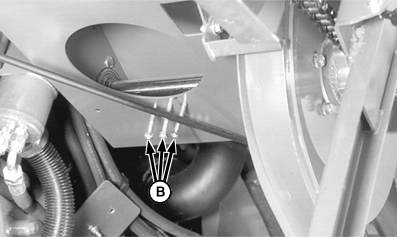

B - Extra Shear Bolts (3 Used)

Use only John Deere supplied shear bolt (A) (cap screw through hub), see your John Deere dealer for replacement shear bolts.

Extra shear bolts (B) are provided to the right of the drive below the countershaft.

IMPORTANT: Do not install a tire inner tube or a sack to end of unloading auger. Any restriction at end of auger can cause damage to unloading auger system and could cause shear bolt failure.
