Grain Tank Loading Auger Deflector

CAUTION: Shut OFF engine, set parking brake and remove key.

H80881
H80881-UN-11MAY04

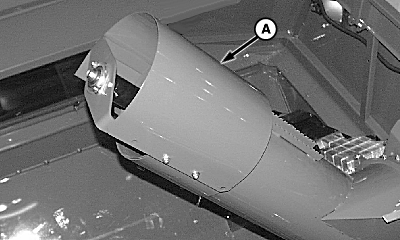

A - Deflector

Position deflector (A) as needed.

Out or up position:

  • Windy conditions when harvesting crops like grass seed or rape.
  • Corn—Grain tank will fill to the left and to the rear.

In or down position:

  • Grain—Grain tank will fill to the right and to the front.
